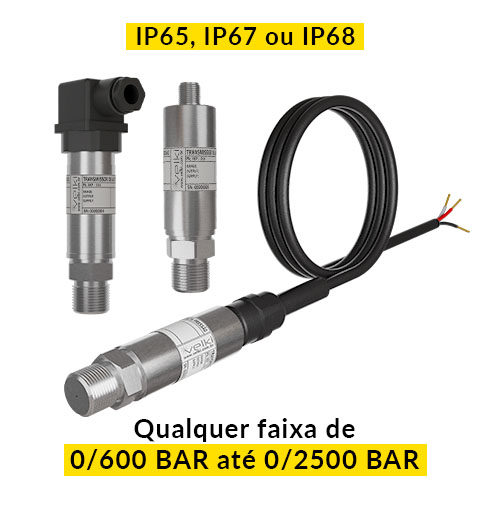

The IP65, IP67, and IP68 Ultra-High Pressure Transmitter features the most compact design on the market. It was designed to meet industrial applications and solve the challenges of large pressure levels with precision and efficiency, meeting the process needs with a superior pressure level. It is available in three degrees of protection: IP65 with a DIN 43650 connector, IP67 with an M12 connector, and IP68 with a cable gland. The microcontrolled electronics consist of high-quality SMD components and feature exclusive temperature compensation technology, making it the best option for different industry demands.
Industrial process control with high pressure levels
High-pressure pumps
Test and calibration systems
Power generation and transmission
Hydraulics
Código da Especificação:
Não encontrou as especificações que precisa?
Faça um orçamento personalizado clicando aquiPreço:
R$
| Sensor Type | Strain Gauge |
| Strain Gauge | 0...600BAR to 0...2500BAR |
| Accuracy | +/-0.5% F.S. (Including hysteresis and repeatability) |
| Overpressure | 150% F.S. |
| Diaphragm Material | Tempered 17-4 Stainless Steel |
| Fluid Temperature | -20ºC ... 80ºC |
| Ambient Temperature | -20ºC ... 80ºC |
| Housing Material | AISI-316 Stainless Steel |
| Protection Degree | IP65 |
| Electrical Connection Type | DIN43650 |
| Output Signal | 4...20mA / 0...10VDC / 0...5VDC |
| Output Signal Limit | 3.2...22.3mA / -1.2...11.2V / -0.6...5.6V |
| Power Supply | 10...32VDC / 12...32VDC / 10...32VDC |
| Power Consumption | Max. 24mA / Max. 5mA / Max. 5mA |
| Response Time | (0-99%) < 5ms |
| Communication Cable | Made of PVC (*OPTIONAL) |
| Connection Material | AISI-316 Stainless Steel |
| Process Connection | 1/2” BSPM |
| Wetted Parts Material | AISI-316 Stainless Steel + Tempered 17-4 Stainless Steel |
| Electromagnetic Compatibility | EN 61000-6-2: 2005 / EN 61000-6-3: 2005 / EN 61326-2-3: 2006 |
