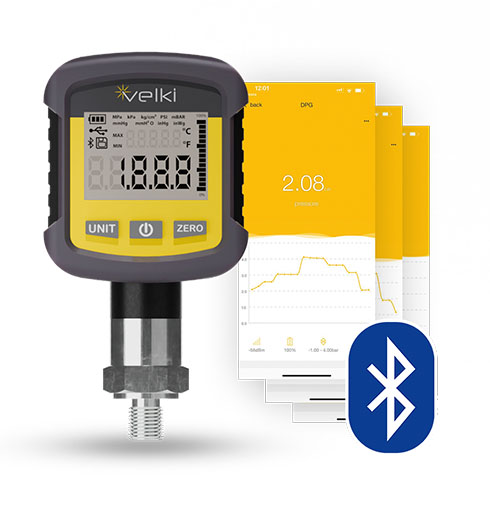

The VKP-069 Digital Manometer was designed to meet industrial application needs and address the challenges of pressure measurement and indication. Equipped with cutting-edge technology, this digital manometer is suitable for portable pressure measurement, equipment matching, calibration systems, and other pressure measurement applications.
Laboratory and pharmaceutical sector
Testing and calibration systems
Hydraulics
Pneumatics
Código da Especificação:
Não encontrou as especificações que precisa?
Faça um orçamento personalizado clicando aquiPreço:
R$ 0,00
| Range | 0 / 6 kPa | 0 / 25 kPa | 0 / 1 bar | -1 / +4 bar | 0 / 6 bar | 0 / 10 bar | -1 / +10 bar | 0 / 25 bar | 0 - 100 bar | -1 / +40 bar | 0 / 60 bar | 0 / 400 bar | 0 / 600 bar | 0 / 700 bar | 0 / 1000 bar | 0 / 1500 bar ( M20x1.5 ) | 0 / 2000 bar ( M20x1.5 ) |
| Overload Capacity | See Manual |
| Backlight Color | White |
| Dimensions | 140 x 74.5 x 40.3 |
| Accuracy | 0.2%FS / 1%FS |
| Long-term Stability | +/- 0.3%FS / YEAR |
| Operating Temperature | -20...65ºC |
| Electrical Protection | Anti-electromagnetic interference design |
| Measuring Medium | Oil, water, gas, and other non-corrosive media compatible with stainless steel |
| Process Connection | 1/4” BSPM / M20x1.5 |
| Connection Material | AISI Stainless Steel |
| Head Material | TPE + ABS |
| Functions | Power on/off / backlight / zero calibration / peak memory / Bluetooth connection |
| Power Supply | 3V (2 x AA batteries) |
| Power Display | Four-section display |
| Rotation | Display can rotate 330 degrees |
| Engineering Units | MPa, bar, kgf, mH2O, PSI, kPa, mmHg, mbar, mmH2O, Pa, inWC (different ranges may display different engineering units) See table |
| Protection Level | IP54 |
