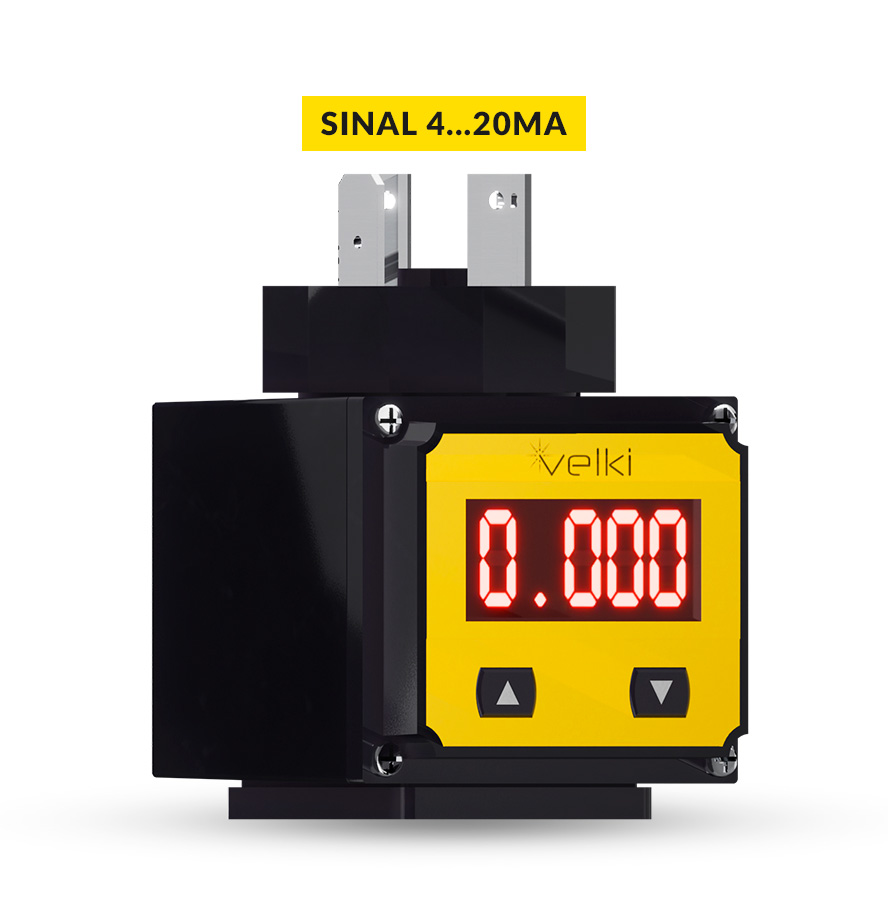

The VKC-615 is suitable for all 2-wire transmitters with 4...20mA output signal, powered by a 2-wire circuit, including pressure, differential pressure, temperature, flow, pH, acceleration, and force, etc. This product is microprocessor-based, programmed via two keys to set zero point, full scale, decimal point, display rate, and adjustable control point settings, without any potentiometer adjustment. Without an external power supply, 4–20 mA signals in the tested circuit can be accurately displayed by simply connecting them in series with the test circuit. Its outstanding advantage lies in its much lower voltage drop compared to similar products on the market. High-brightness LED display, stable data visualization, without signal jumps.
Industrial process control
Testing and calibration system
Power generation and transmission
Sanitation
Food industry
Refrigeration, ventilation, heating, and air conditioning
Hydraulics
Pneumatics
Código da Especificação:
Não encontrou as especificações que precisa?
Faça um orçamento personalizado clicando aquiPreço:
R$
INPUT | 4...20mA ( 2 WIRES ) |
POWER SUPPLY | 15...32VCC |
CONSUMPTION | 5V |
DIMENSÃO | 42,5 x 36,0mm - 4 DIGITOS ( -1.9.9.9 ATE 9.9.9.9) |
DISPLAY | LED, 10mm HEIGHT |
ACCURACY | +/- 0,3%F.E. |
SAMPLING | 4 x PER SECOND |
AMBIENT TEMPERATURE | -25º...70ºC |
OPERATING TEMPERATURE | -10º...55ºC |
HOUSING MATERIAL | ABS and POLYCARBONATE |
DEGREE OF PROTECTION | IP55 |
