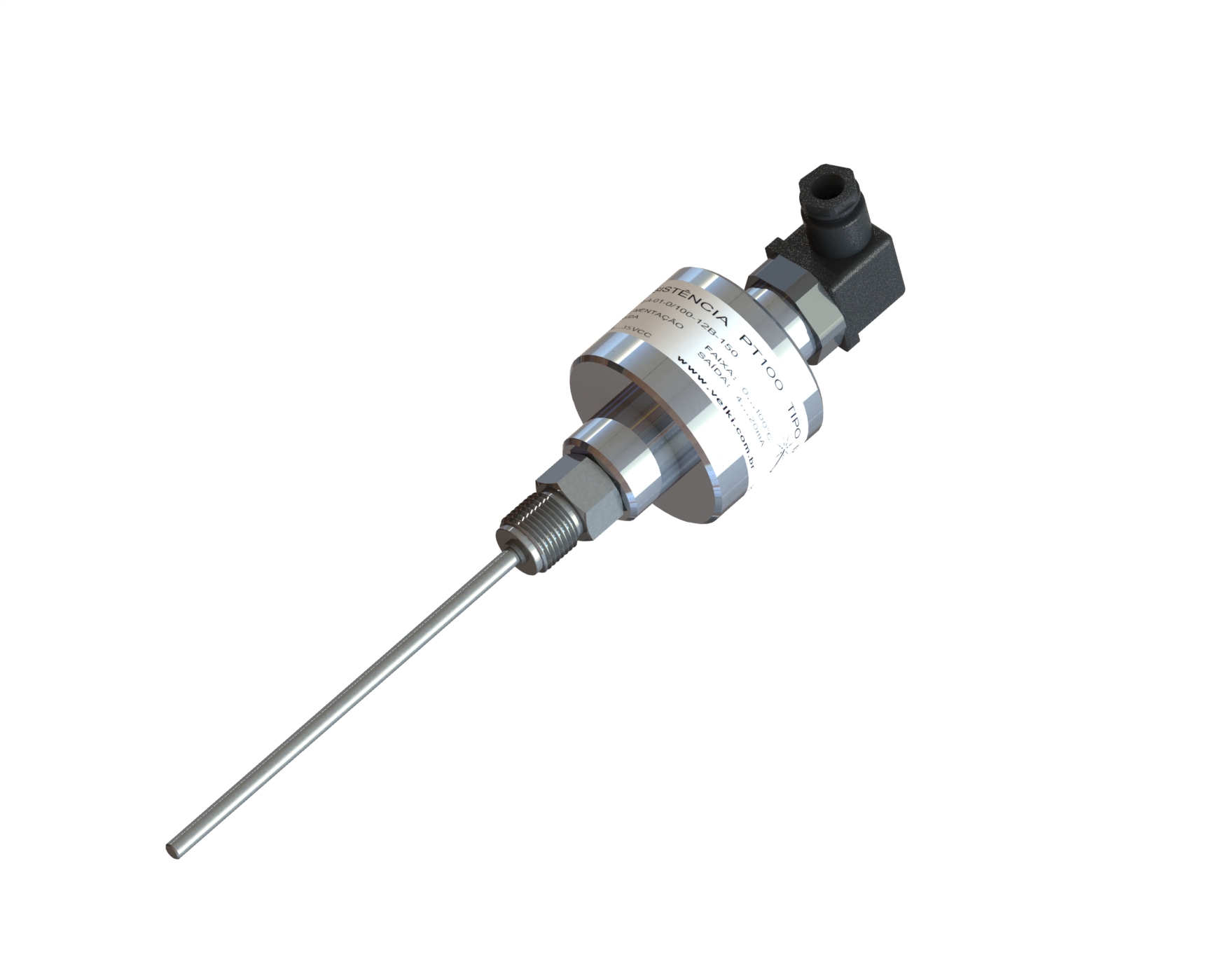

The PT-100 Thermoresistance DIN 43650 4...20mA was designed to meet industrial applications and address temperature measurement challenges. Its sensing element is a PT-100 thermoresistance, where resistance varies with temperature changes. Its modular design allows for various construction combinations.
Industrial process control
Power generation and transmission
Sanitation
Food and beverage
Pharmaceutical
Chemicals and fertilizers
Agricultural
Plastics and polymers
Cement
Ceramics
Refrigeration, ventilation, heating, and air conditioning
Código da Especificação:
Não encontrou as especificações que precisa?
Faça um orçamento personalizado clicando aquiPreço:
R$ 0,00
| Electrical Connection | DIN 43650 |
| Protection Rating | IP65 |
| Process Connection | According to Table |
| Stem Length | Min.: 20mm Max.: 1000mm |
| Stem Diameter | 6.35mm |
| Connection Material | Stainless Steel 304 |
| Stem Material | Stainless Steel 304 |
| Electrical Connection | Cable gland |
| Output Signal | 4...20mA (2-wire) |
| Accuracy | Class A |
| Temperature Range | -20°...500°C |
| Process Pressure | Max. 10 kgf/cm² |
